YING M Trimless Grid Spotlight Single-Head-CETTIGA Lighting

W21301LED-12W2736

Product Features Size Overview Related Accessories

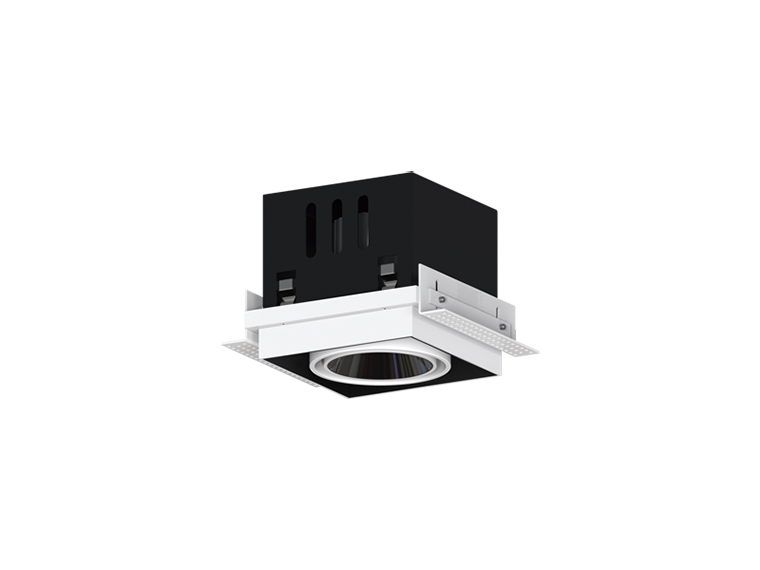

YING M Trimless Grid Spotlight Single-Head

Code: W21301LED-12W2736

Single head adjustable angle design can help more accurately project light onto the object, highlighting a single area or object.

Applications: Star-rated Hotels, Villas, Residential buildings, etc.

MOUNTING	Recessed
SHAPE	Square & Trimless
ORIENTATION	Adjustable
ADJUSTABILITY	Tilt 25°
IP-RATING	IP20~IP54
IK-RATING	IK03
DIMENSION	L134xW134xH123 mm
CUT-OUT	L130xW130 mm
CEILING THICKNESS	5-20 mm
MAIN MATERIAL	Aluminum ADC-12
N.W. / G.W.	1.098kg / 1.148kg
SIZE(CTN)	56x34x30cm
QTY/CTN	12 pcs/ctn
CONTROL GEAR	Remote
DIMMING	Non-dim
DIMMING OPTION	DALI/1-10V/PHASE/Bluetooth
OPTIONAL ACC.	Honeycomb Louver/Glass
COLOUR (housing)	Black+White
COLOUR (reflector)	Dark Chrome/Specular/Sandy White/Sandy Black/Matt black/Gold

MAINS VOLTAGE	220-240V AC
OPTIONAL VOLTAGE	100-240V AC
FREQUENCY	50/60 Hz
TEMP.	-20° C / +40° C
WARRANTY	5 Years
DRIVER OPTION(S)	Tridonic, Meanwell, TCI, LTECH, Euchips, Eaglerise
