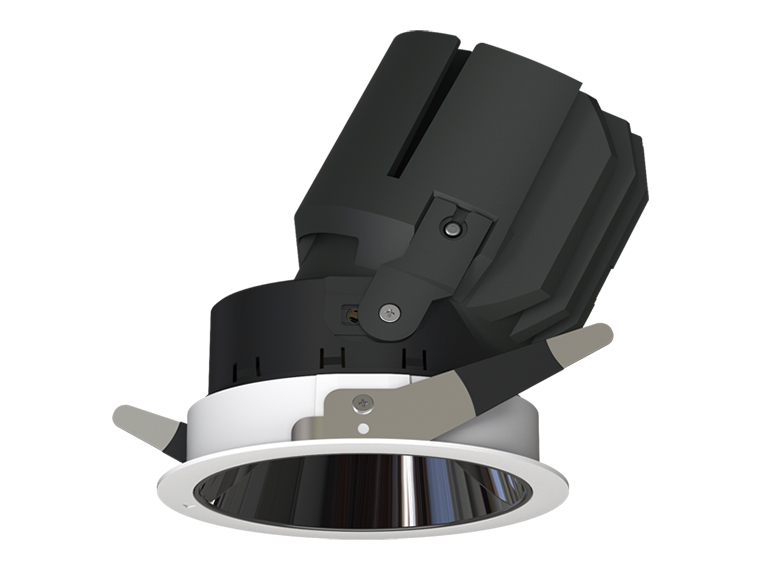

YING L Trim Adjustable Spotlight Φ116

Code: 11162LED-S-30W2715

High efficiency spotlight technology and adjustable angle design provide more luminous flux and brightness for higher and larger space, and can project light to a longer distance.

Applications: Star-rated Hotels, Villas, Residential buildings, etc.

Product overview

MOUNTING	Recessed
SHAPE	Round & Trim
ORIENTATION	Adjustable
ADJUSTABILITY	Tilt 25°(Translation 8mm), Rotate 355°
IP-RATING	IP20~IP54
IK-RATING	IK03
DIMENSION	Ø116x147 mm
CUT-OUT	Ø104 mm
CEILING THICKNESS	5-20 mm
MAIN MATERIAL	Aluminum
N.W. / G.W.	0.779kg / 0.829kg
SIZE(CTN)	58x32x35.5cm
QTY/CTN	16 pcs/ctn
CONTROL GEAR	Remote
DIMMING	Non-dim
DIMMING OPTION	DALI/1-10V/PHASE/Bluetooth
OPTIONAL ACC.	Honeycomb Louver/Glass
COLOUR (housing)	Gray+White/Gray+Black
COLOUR (reflector)	Dark Chrome/Specular/Sandy white/Sandy black/Matt black/Gold

Technical drawings

Optical data

POWER	30W
CCT	2700K
CRI	Ra ≥ 90
BEAM ANGLE	15°
SOURCE FLUX	2430 lm
SYSTEM FLUX	1678 lm
EFFICACY	57 lm/W
LIGHT SOURCE	LED
LED BRAND	CITIZEN
VF	36V
CURRENT	700mA
LED LIFE	50000h@L80
SDCM	SDCM≤3
POWER FACTOR	0.9

Other

MAINS VOLTAGE	220-240V AC
OPTIONAL VOLTAGE	100-240V AC
FREQUENCY	50/60 Hz
TEMP.	-20° C / +40° C
WARRANTY	5 Years
DRIVER OPTION(S)	Tridonic, Meanwell, TCI, LTECH, Euchips, Eaglerise
