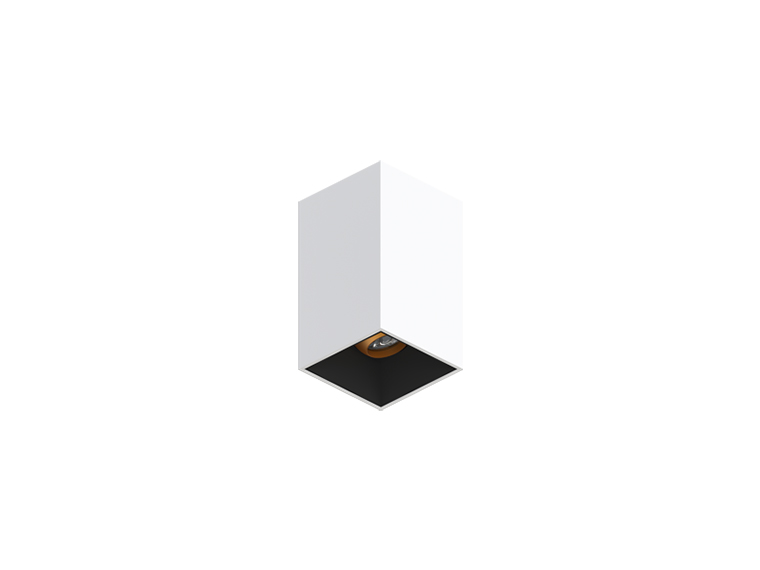

Surface-mounted Adjustable Downlight 89×89×150

Code: 89014LED-10W2750

Square body with gimbal adjustment function reshapes light order and visual focus. Direct surface mounting saves the trouble of ceiling cutting.

Applications: Hotels, shopping malls, bars, restaurants, villas, etc.

MOUNTING	Surface-mounted
SHAPE	Square
ORIENTATION	Adjustable
ADJUSTABILITY	Gimbal 15°
IP-RATING	IP20
IK-RATING	IK03
DIMENSION	L89xW89xH150 mm
MAIN MATERIAL	Aluminum ADC-12
N.W. / G.W.	0.973kg / 1.023kg
SIZE(CTN)	32x32x39.5 cm
QTY/CTN	18 pcs/ctn
CONTROL GEAR	Built-in driver
DIMMING	Non-dim
DIMMING OPTION	DALI/1-10V/PHASE
OPTIONAL ACC.	Honeycomb Louver/Glass
COLOUR (housing)	White/Black
COLOUR (reflector)	White/Black/Gold/Black+Gold/White+Black

MAINS VOLTAGE	220-240V AC
OPTIONAL VOLTAGE	100-240V AC
FREQUENCY	50/60 Hz
TEMP.	-20° C / +40° C
WARRANTY	5 Years
DRIVER OPTION(S)	Tridonic, Meanwell, TCI, LTECH, Euchips, Eaglerise
