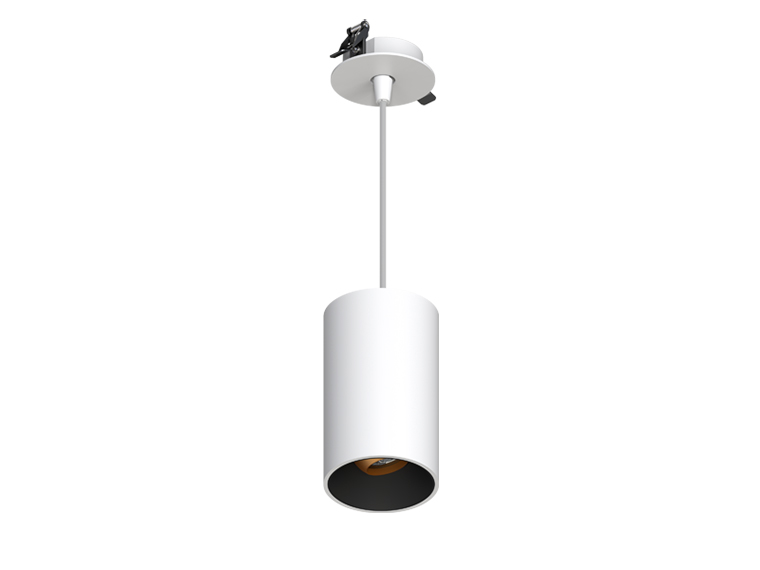

Adjustable Pendant & Recessed Downlight φ89×150

Code: 29012LED-15W3024

Gimbal design enables precise light direction control, highlighting textures and spatial layers. Recessed-mounted design with customized cord length, precisely adapted to ceiling height.

Applications: Hotels, shopping malls, bars, restaurants, villas, etc.

Product overview

MOUNTING	Recessed
SHAPE	Round
ORIENTATION	Adjustable
ADJUSTABILITY	Gimbal 15°
IP-RATING	IP20
IK-RATING	IK03
DIMENSION	Ø89x150 mm
CUT-OUT	Ø64 mm
CEILING THICKNESS	5-20 mm
MAIN MATERIAL	Aluminum ADC-12
N.W. / G.W.	1.065kg / 1.115kg
SIZE(CTN)	55x41.5x25 cm
QTY/CTN	12 pcs/ctn
CONTROL GEAR	Remote
DIMMING	Non-dim
DIMMING OPTION	DALI/1-10V/PHASE
OPTIONAL ACC.	Honeycomb Louver/Glass
COLOUR (housing)	White/Black
COLOUR (reflector)	White/Black/Gold/Black+Gold/White+Black

Technical drawing

Optical data

POWER	15W
CCT	3000K
CRI	Ra ≥ 90
BEAM ANGLE	24°
SOURCE FLUX	1634 lm
SYSTEM FLUX	1078 lm
EFFICACY	73 lm/W
LIGHT SOURCE	LED
LED BRAND	CITIZEN
VF	31V
CURRENT	400mA
LED LIFE	50000h@L80
SDCM	SDCM≤3
POWER FACTOR	0.9

Other

MAINS VOLTAGE	220-240V AC
OPTIONAL VOLTAGE	100-240V AC
FREQUENCY	50/60 Hz
TEMP.	-20° C / +40° C
WARRANTY	5 Years
DRIVER OPTION(S)	Tridonic, Meanwell, TCI, LTECH, Euchips, Eaglerise
