YING M Trim Adjustable Deep Anti-glare Spotlight Φ86-CETTIGA Lighting

1867LED-10W2736

Product Features Size Overview Related Accessories

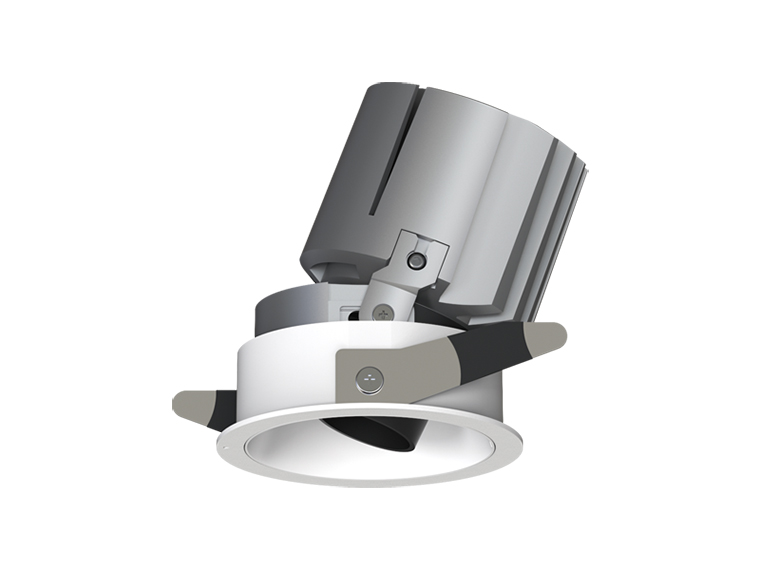

YING M Trim Adjustable Deep Anti-glare Spotlight Φ86

Code: 1867LED-10W2736

The precise light control technology and the design of adjustable angle of the spotlight makes every beam of light have the ultimate anti glare effect in the process of precise projection.

Applications: Star-rated Hotels, Villas, Residential buildings, etc.

Product overview

MOUNTING	Recessed
SHAPE	Round & Trim
ORIENTATION	Adjustable
ADJUSTABILITY	Tilt 25°(Translation 8mm), Rotate 355°
IP-RATING	IP20~IP54
IK-RATING	IK03
DIMENSION	Ø86x106 mm
CUT-OUT	Ø78 mm
CEILING THICKNESS	5-20 mm
MAIN MATERIAL	Aluminum
N.W. / G.W.	0.417kg / 0.467kg
SIZE(CTN)	60x25x52.5cm
QTY/CTN	40 pcs/ctn
CONTROL GEAR	Remote
DIMMING	Non-dim
DIMMING OPTION	DALI/1-10V/PHASE/Bluetooth
COLOUR (housing)	Gray+White/+Black+White
COLOUR (reflector)	white/Sandy black

Technical drawings

Optical data

POWER	10W
CCT	2700K
CRI	Ra ≥ 90
BEAM ANGLE	36°
SOURCE FLUX	1053 lm
SYSTEM FLUX	703 lm
EFFICACY	62 lm/W
LIGHT SOURCE	LED
LED BRAND	CITIZEN
VF	31V
CURRENT	300mA
LED LIFE	50000h@L80
SDCM	SDCM≤3
POWER FACTOR	0.9

Other

MAINS VOLTAGE	220-240V AC
OPTIONAL VOLTAGE	100-240V AC
FREQUENCY	50/60 Hz
TEMP.	-20° C / +40° C
WARRANTY	5 Years
DRIVER OPTION(S)	Tridonic, Meanwell, TCI, LTECH, Euchips, Eaglerise
