YING M Adjustable Pin‑Hole Retrofit (for MR16)-CETTIGA Lighting

1864F-GU5.3

Product Features Size Overview Related Accessories

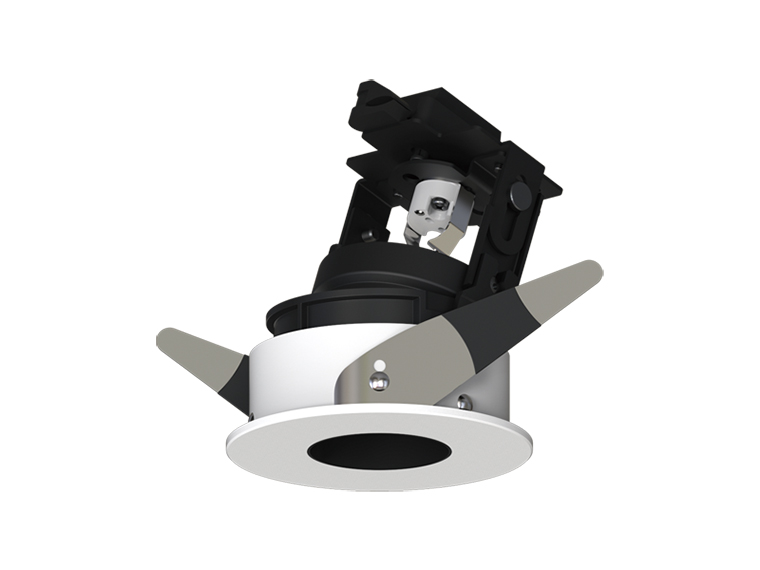

YING M Adjustable Pin‑Hole Retrofit (for MR16)

Code: 1864F-GU5.3

Circular deep cylinder design, available for standard MR-16 light sources. different reflectors and optical accessories are options, it can better control the glare of the light source.

Applications: Star-rated Hotels, Villas, Residential buildings, etc.

Product overview

MOUNTING	Recessed
SHAPE	Round & Trim
ORIENTATION	Adjustable
ADJUSTABILITY	Tilt 25°(translation 4mm), Rotate 355°
IP-RATING	IP20
IK-RATING	IK03
DIMENSION	Ø86x105~120 mm
CUT-OUT	Ø78 mm
CEILING THICKNESS	5-20 mm
MAIN MATERIAL	Aluminum ADC-12
N.W. / G.W.	0.25kg / 0.30kg
SIZE(CTN)	60x25x52.5 cm
QTY/CTN	40 pcs/ctn
OPTIONAL ACC.	Honeycomb Louver/Glass
COLOUR (housing)	White/Black
COLOUR (reflector)	Black
