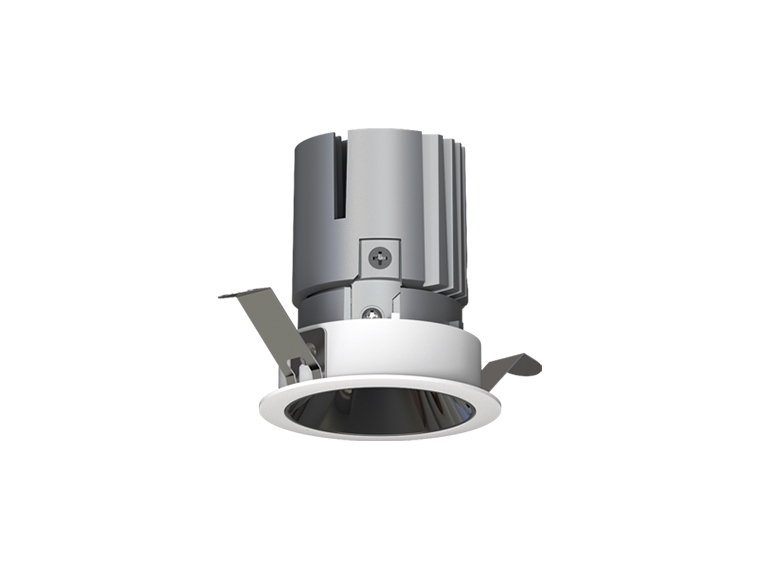

YING S Trim Fixed Spotlight Φ60

Code: 1601LED-7W2724

Exquisite physique design makes itsuitable for all kinds of low ceiling andnarrow space. The maximum powerhas been increased to 10W, resulting in more efficient performance.

Applications:Star-rated Hotels,Villas,Residential buildings, etc.

Product overview

MOUNTING	Recessed
SHAPE	Round & Trim
ORIENTATION	Fixed
IP-RATING	IP20~IP54
IK-RATING	IK03
DIMENSION	Ø60x67 mm
CUT-OUT	Ø55 mm
CEILING THICKNESS	5-20 mm
MAIN MATERIAL	Aluminum
N.W. / G.W.	0.156kg / 0.206kg
SIZE(CTN)	38x38x34.5cm
QTY/CTN	64 pcs/ctn
CONTROL GEAR	Remote
DIMMING	Non-dim
DIMMING OPTION	DALI/1-10V/PHASE/Bluetooth
OPTIONAL ACC.	Honeycomb Louver/Glass
COLOUR (housing)	Gray+White/Gray+Black
COLOUR (reflector)	Dark Chrome/Specular/Sandy white/Sandy black/Matt black/Gold

Technical drawings

Optical data

POWER	7W
CCT	2700K
CRI	Ra ≥ 90
BEAM ANGLE	24°
SOURCE FLUX	668 lm
SYSTEM FLUX	495 lm
EFFICACY	64 lm/W
LIGHT SOURCE	LED
LED BRAND	CITIZEN
VF	12V
CURRENT	500mA
LED LIFE	50000h@L80
SDCM	SDCM≤3
POWER FACTOR	0.9

Other

MAINS VOLTAGE	220-240V AC
OPTIONAL VOLTAGE	100-240V AC
FREQUENCY	50/60 Hz
TEMP.	-20° C / +40° C
WARRANTY	5 Years
DRIVER OPTION(S)	Tridonic, Meanwell, TCI, LTECH, Euchips, Eaglerise
