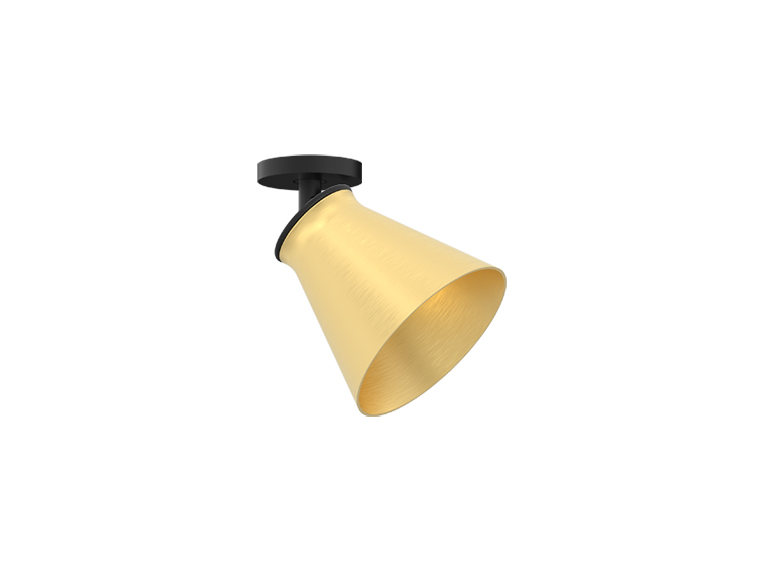

Surface-mounted Spotlight with Zoom Optics (Remote driver)

Code: 81151LED-7W3018

Surface-mounted design with external driver for a lighter body. Brass lampshade in brushed/black or handcrafted finishes. Zoom optics enable both focused and diffused lighting.

Applications: galleries, residences, restaurants, luxury hotels, art museums, etc.

Product overview

MOUNTING	Surface-mounted
SHAPE	Round
ORIENTATION	Adjustable
ADJUSTABILITY	Tilt 90°, Rotate 350°
IP-RATING	IP20
IK-RATING	IK03
DIMENSION	Ø115x130mm
CUT-OUT	Ø30 mm
CEILING THICKNESS	5-20 mm
MAIN MATERIAL	Brass+Aluminum
N.W. / G.W.	4.074kg/5.074kg
SIZE(CTN)	464432cm
QTY/CTN	6pcs/ctn
CONTROL GEAR	Remote
DIMMING	Non-dim
DIMMING OPTION	DALI/1-10V/PHASE/Bluetooth
COLOUR (housing)	Brushed brass, brushed black, Color code: TWJ505, TWJ303, TWJ307, TWJ312, TWJ315, TWJ306, TWJ301, TWJ316, TWJ201

Technical drawing

Optical data

POWER	7W
CCT	3000K
CRI	Ra ≥ 90
BEAM ANGLE	18°~46°
SOURCE FLUX	699 lm
SYSTEM FLUX	473 lm
EFFICACY	67 lm/W
LIGHT SOURCE	LED
LED BRAND	CITIZEN
VF	36V
CURRENT	150mA
LED LIFE	50000h@L80
SDCM	SDCM≤3
POWER FACTOR	0.9

Light Distribution

Other

MAINS VOLTAGE	220-240V AC
OPTIONAL VOLTAGE	100-240V AC
FREQUENCY	50/60 Hz
TEMP.	-20° C / +40° C
WARRANTY	5 Years
DRIVER OPTION(S)	Tridonic, Meanwell, TCI, LTECH, Euchips, Eaglerise

Surface-mounted Spotlight with Zoom Optics (Remote driver)

Product overview

Technical drawing

Optical data

Light Distribution

Other
