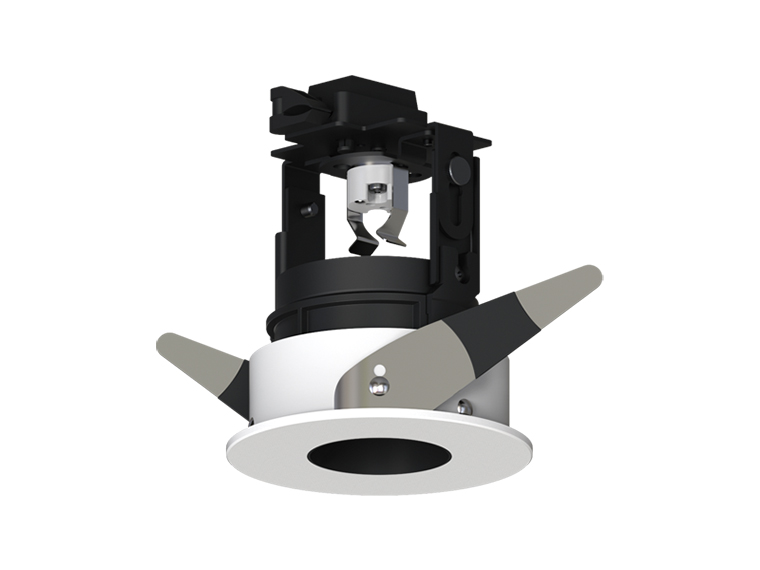

YING M Fixed Pin‑Hole Retrofit (for MR16)

Code: 1863F-GU5.3

The design of circular deep cylinder is applicable to standard MR-16 light sources. Different reflectors and optical accessories are options. So that you can better control the glare of the light source.

Applications: Star-rated Hotels, Villas, Residential buildings, etc.

Product overview

MOUNTING	Recessed
SHAPE	Round & Trim
ORIENTATION	Fixed
IP-RATING	IP20
IK-RATING	IK03
DIMENSION	Ø86x100~115 mm
CUT-OUT	Ø78 mm
CEILING THICKNESS	5-20 mm
MAIN MATERIAL	Aluminum ADC-12
N.W. / G.W.	0.25kg / 0.30kg
SIZE(CTN)	60x25x52.5 cm
QTY/CTN	40 pcs/ctn
OPTIONAL ACC.	Honeycomb Louver/Glass
COLOUR (housing)	White/Black
COLOUR (reflector)	Black
